Linx 9000 Series
“Introducing the Linx 9000 series CIJ printer line: Your solution for efficient date coding”
The Linx 9000 Series CIJ printer revolutionizes date coding with its robust capabilities, offering customers a new and more cost-effective solution. Designed to meet the demands of modern production environments, this cutting-edge printer ensures accuracy and efficiency in coding dates, enhancing productivity while minimizing operational costs
Spec Sheets
- Up to 3 lines of print
- 7.28 m/s line speed
- Linx PrintProtect Battery Back up
- 7” Full Color Touchscreen

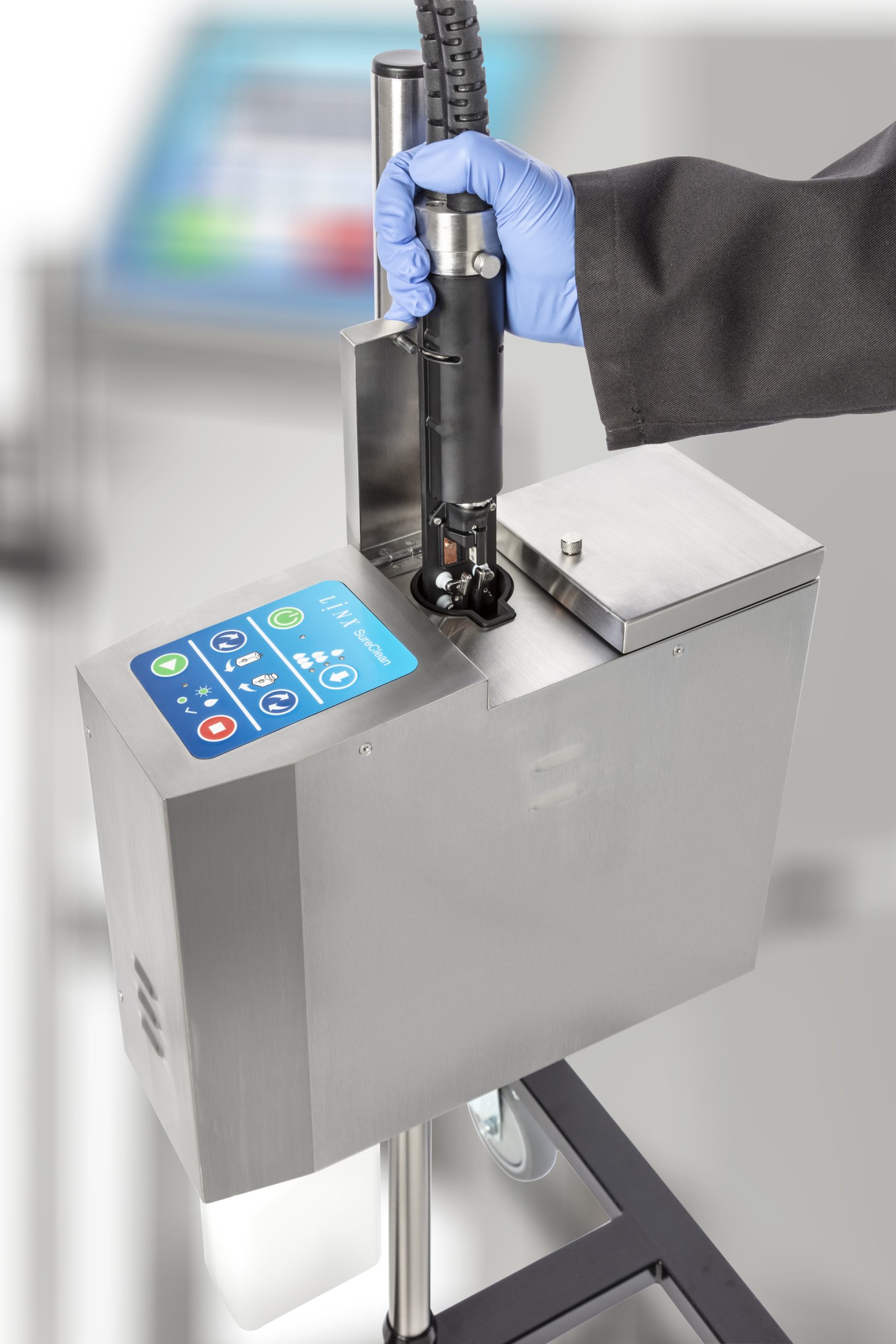

- Linx Sureclean Printhead wash station
- IP 55 Rated
- Ink colors available; Black, White, Yellow & Blue

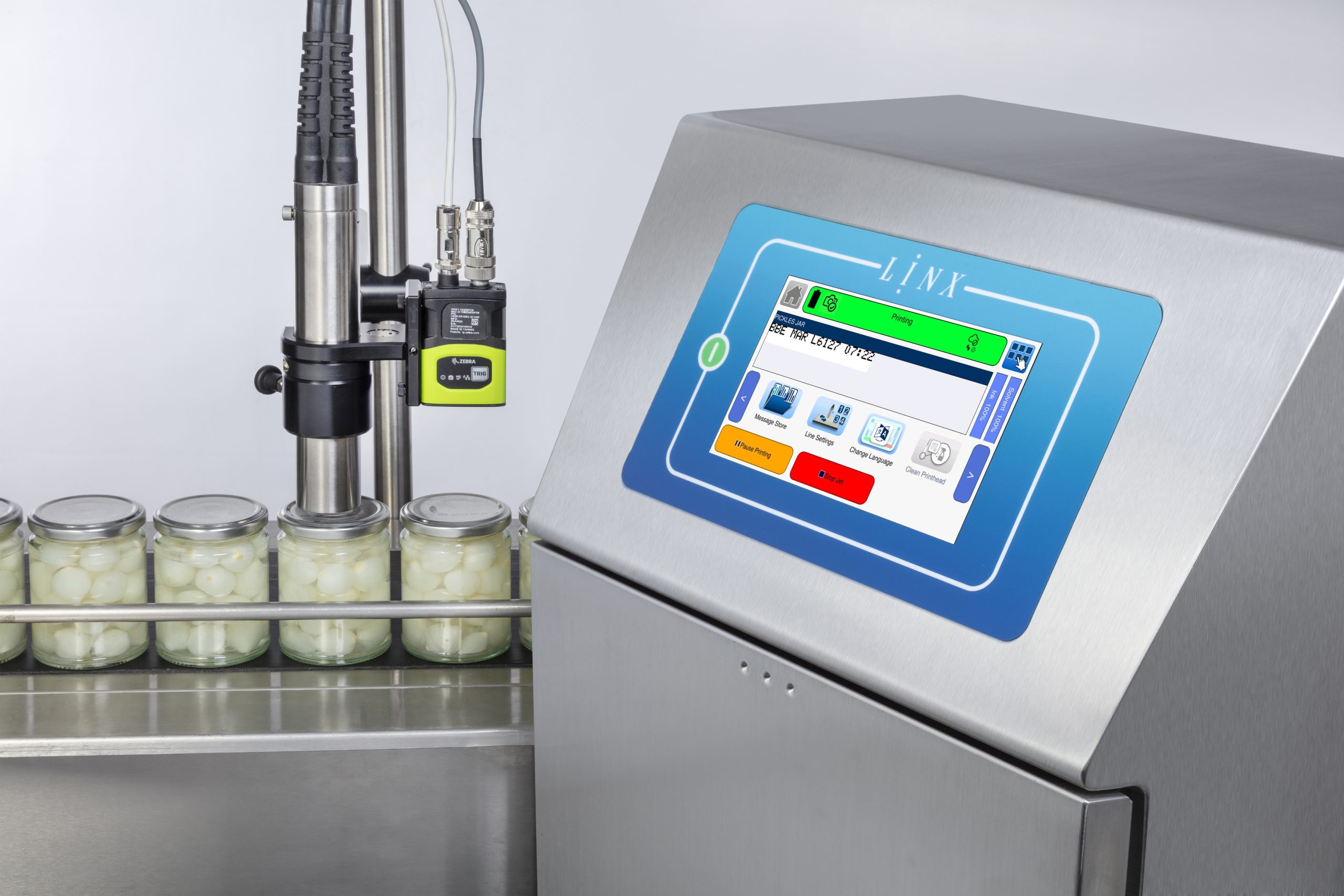

- Optional Linx Iris Visual System
- Print Capability; Symbols, Numbers, Sequential numbering, Dates, Times, Rotated character (tower) printing, Inverted printing, Graphics, Logos
Why choose the Linx 9000 Series CIJ Printer Line?
Whether you are an experienced production professional or are just beginning to add coding capabilities to your products, the Linx 9000 Series offers an economical and reliable solution for your operation. Designed to help reduce operating costs through low solvent consumption and efficient performance, the Linx 9000 Series delivers dependable coding without unnecessary complexity. From everyday date coding to advanced product identification, the Linx 9000 Series provides the flexibility, reliability, and value today’s manufacturers demand.
Why choose CLM Systems?
CLM Systems sales and technicians are all factory trained and certified by Squid Ink. CLM systems offers the most completive service rates and free onsite demo’s to visualize the Linx 9000 Series CIJ line. Rugged design. Revolutionary software. Low cost of ownership. Your benefits go on and on. When it comes to industrial ink jet coding, rely on CLM Systems to provide the right solution for your coding and marking needs.
- Print Technology – Continuous Ink Jet
- Nozzle Size – 70μm nozzle standard, 60μm and 50μm nozzle optional
- Print Speed – Up to 1,000 feet/minute (305m/min) 7×5 font matrix
- Max Print Lines – 5 lines @ 5×5 font, 4 lines @ 7×5 font matrix
- Font Matrix Configurations – 5×5, 7×5, 9×7, 12×12, 16×16, 24×24, 32×32
- Character Height – 0.07” – 0.59” (1.8mm – 15mm); up to 32 dot high font with single line of text
- Throw Distance – Up to 1.2” (30mm) distance from printhead to substrate
- Operating Features – One button print start / stop, control print delay, reverse print, invert print, bold print, auto-start self-clean
- CleanJet™ – Quick and easy one button start/stop process for automatic self-cleaning operation
- Communication Inputs – Photocell/trigger, encoder, reverse print, external counter increment
- Communication Outputs – Alarm light (3-color), print ready, warning
- Ports – Ethernet, RS-232, 3 USB ports for communication/wi-fi, alarm, tablet charging
- Printhead – Compact and durable stainless steel design, omni-directional print capability
- Inks – Comprehensive range of inks for a variety of applications and industry requirements including MEK, Acetone, and Ethanol-base; colors and soft pigment formulations available; no chips or RFID tags to deal with
